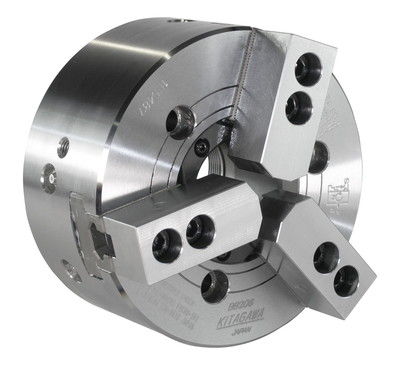

Kitagawa BB206 170mm-Large Thru-Hole Power Chuck

£1,618.00 £1,537.10
  • Kitagawa's leading large through hole power chuck.
  • This Chuck is not supplied with ANY Jaws.

1 in stock

Kitagawa BB206 170mm-Large Thru-Hole Power Chuck - BB206

Kitagawa’s chucks are manufactured from high grade alloy steel. Three jaw wedge style power chucks deliver up to 20% more speed, gripping force and bore size when compared to conventional chucks.

  • Through-hole (mm): 53
  • Plunger Stroke (mm): 12
  • Max. Input: 20 kN, 2039 kgf
  • Max Speed: 6000rpm
  • Weight (with soft jaws) 11.7kg
  • Moment of inertia: 0.050 kg.m2
  • Matching cylinders: SS1452K or SS1453K
  • Max pressure: 1.88 MPa, 19.2 cm2
  • Matching hard top jaw: HB06B1 or HB06A1
  • Optional soft top jaw: PT-06, BA-06, DJ-06

Brand KITAGAWA
