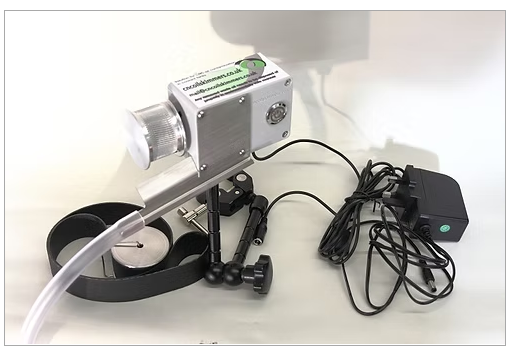

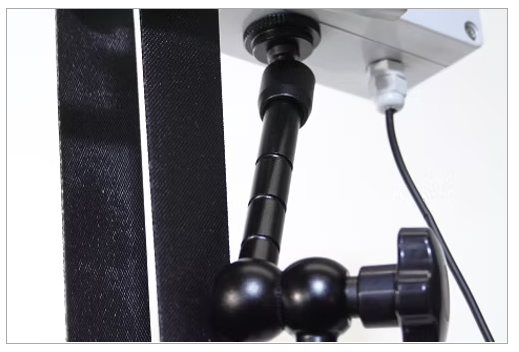

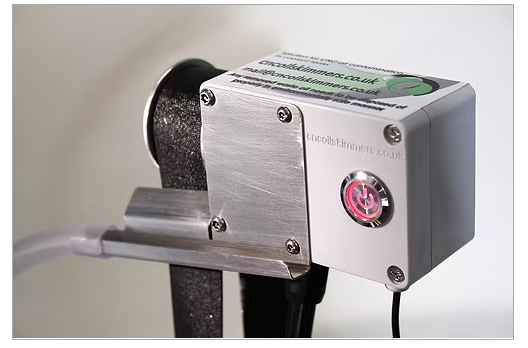

Cnc oil skimmers with Articulate arm Fixing
£285.00
Cnc oil skimmers with Articulate arm Fixing - ms2-30
- Technical information Cnc Tramp Oil Skimmer MS2
- Standard belt length is 800mm circumference. (330mm drop length)
- 2L/Ph Oil removal rate
- Heavy Duty Reinforced Neoprene Belt
- (operating temprature -20 degC + 80deg C) (For polyurethane belts please get in touch)
- -12V DC Powerful High Torque Gear Box Motor
- Excellence wear-resistant metal gear
- Low noise,
- Long service life.
- Standard wire lead length is 4meters long, additional extension lead can be added 3meters long
- Specifications:
- Rated voltage: 12VDC
- No-load speed: 10RPM
- Stall torque: 15kg/cm
- Product dimensions (main body): 130mm x 70mm x 100mm (L x W x H)
- Every unit comes with 30mm belt width x 340 mm drop length. (800mm circumference)
- Product dimensions (fully extended with 360deg foot): 100x 80 x (100-400mm) ( L x W x H )
- Weight: 2.kg
